10KWh 15KWh 20KWh 51.2V 100Ah 200Ah 300Ah Stacking AC Power System LifePO4 Lithium Batteries for Household Energy Storage

ブランド名:	GBS
MOQ:	1
価格:	R$11,715.46-13,396.37

詳細情報

製品の説明

詳細情報

起源の場所:

浙江省、中国

電池のタイプ:

LiFePO4

出力範囲:

10~20KWh

システムタイプ:

ラック・マウント式

貯蔵エネルギー:

5.12KWh×N

バッテリーの電圧と容量:

51.2V/(100xN)Ah

出力電圧:

230VAC+-5%

出力効率:

90%

AC出力電圧:

230VAC

最大 PV OCV:

145VDC

MPPT動作電圧:

DC60～130V

コントローラの種類:

MPPT

電源:

ソーラーパネル

特別な機能:

AC電源システム

製品の説明

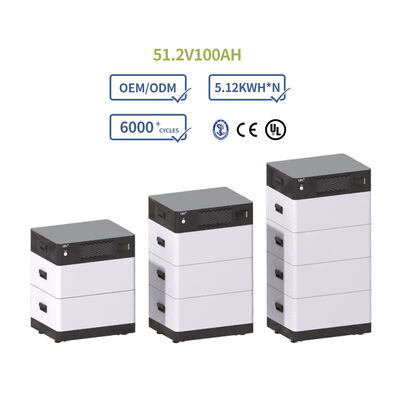

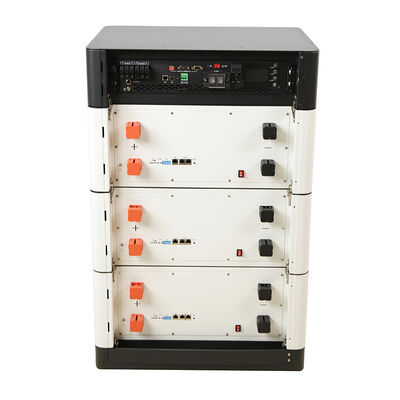

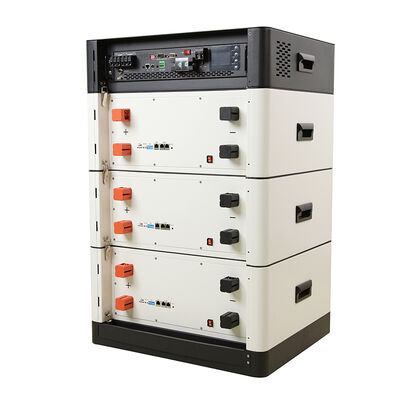

This system mainly meets the energy needs of household users, and aims to provide customers with intelligent and convenient integrated household energy storage solutions that perfectly integrate energy storage battery systems, photovoltaic power generation systems, and municipal electricity. Suitable for urban and rural areas with high electricity bills, unstable power grid operation, frequent power outages, and household electricity and energy security in areas without grid coverage. The system is composed of a photovoltaic inverter and multiple battery modules stacked together, and the number of battery modules can be selected according to the user's power demand. In addition, parallel capacity expansion can also be implemented between systems (three sets of parallel capacity expansion can be achieved) to meet the greater power demand of users.

Specification

Storage energy	5.12KWhxN
Battery voltage and capacity	51.2V/(100xN)Ah
Output power	5KW
Output voltage	230Vac士5%
Output efficiency	90%
AC output voltage	230Vac
Maximum PV OCV	145VDC
MPPT working voltage	60~130VDC
Maximum PV charging current	80A
Maximum AC charging current	60A
Working tempt	charge: 0C~ 55°C; discharge: -10°C~55C
Storage tempt	-15~60C
Relative humidity	5%~95%
Battery module voltage and capacity	51.2V100Ah
Battery module weight	55Kg
Battery module size	600x 480x 230mm
Inverter weight	20Kg
Inverter size	600x480x 150mm
Bottom bracket weight	10Kg
Bottom bracket size	600x 480x 109mm

Company Profile

ZHEJIANG GBS ENERGY CO.,LTD.

Zhejiang GBS is a national high-tech enterprise dedicated to the R&D and manufacturing of lithium iron phosphate battery and lithium battery integration system. The company was established in July 2007, has a digital demonstration factory in Zhejiang province, and currently has two production bases with an annual production capacity of 2 GWh.

The company’s long-term purpose is “innovation to improve quality, quality awakens the concept”, and the pursuit of “ideas to improve the environment, and the environment benefits mankind”, comprehensively promote the construction of the corporate culture of the “Goose Team”, and establish a “lithium battery research and development center” and “academician workstation “Professional development of lithium battery system products, and has obtained the authorization of more than 70 patents for inventions, utility models, appearances, etc., obtained UL, TUV, CE, IEC and other international certifications, and entered the “Automotive Power Battery Industry Specification Conditions” The enterprise catalogue has passed the explosion-proof safety certification of mining products, the TLC certification of telecommunication products and the certification of CCS marine products, becoming one of the first lithium battery manufacturers in China to have qualification certificates in the fields of electric vehicles, mining, telecommunication, and marine applications.
