| ブランド名: | GBSystem |
| モデル番号: | GBS-LFP-100Ah |
| MOQ: | 1 |
| 価格: | €612.97-744.32 |

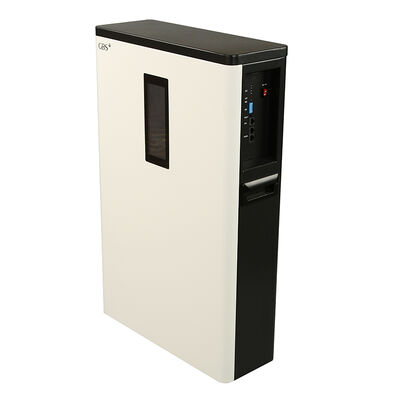

This advanced energy storage solution features LiFePO4 battery cells with integrated BMS for optimal performance and safety. The system supports capacity expansion through parallel connection and offers flexible installation options including ground and wall mounting.
| Model | GBSFP51100LV-1 | GBSFP51100LV-2 |
|---|---|---|
| Rated Voltage | 51.2V | |
| Nominal Capacity | 100Ah | |
| Energy | 5.12KWh | |
| Discharge Current | 0-100A | |
| Discharging Protection Voltage | 43.2V | |
| Charge Current | 0-100A | |
| Balancing Charging Voltage | 56.8V | |
| Float Charging Voltage | 54.4V | |
| Cycle Life | 6000 cycles | |
| Size (W×D×H) | 460×170×740mm | |
| Weight | 52Kg | |
| Charging Temperature | 0-65°C | |
| Discharging Temperature | -20 to 65°C | |
| Relative Humidity | 5% to 95% | |
| Protection Functions | Over charge, over discharge, short circuit, over load, high temperature, low temperature, etc. | |
| Matching Inverter Power | ≤5KW | |
| Installation | Wall-mounted type, ground type | |
| Display | Include | Not include |
